UPLIFT V3 120-Degree Standing Desk UPL120 (Black Laminate, two pop-up power modules) review

This is one UPLIFT V3 120-Degree Standing Desk (UPL120) selector state: the 1-inch Black Laminate top, black V3 C-frame with 27-inch feet, two black PDC013 Pop Up Power Grommets, and the Basic Display Angled keypad. The current maker page lists the desk as UPL120 and presents those options together. That establishes a selectable configuration, not a separate checkout SKU, a completed order, or stock for this particular combination.

Choose the footprint before the power kit

UPLIFT's drawing gives a 71.7-inch overall width and 38.4-inch maximum outside depth. The angled-back, curved-front wraparound is neither a rectangle nor an L return. That 38.4-inch figure is its deepest outer envelope, not uniform work depth: if a keyboard tray, drawing pad or monitor base needs a continuous 30-inch zone, treat fit as unknown. Measure the full footprint on the floor before committing.

This shape can suit a user who wants a broad reach area around one seated or standing position. It is less persuasive in a narrow alcove, where a straight-front desk is easier to place, or for someone who actually needs an L-shaped return. It remains a two-leg electric desk: the angled outline is not evidence of three independent work positions.

Two powered holes, not two extra circuits

The UPL120 drawing shows two 3.15-inch grommet openings. This selected bundle puts a black PDC013 pop-up unit in each: both tops sit flush when closed and raise to expose four grounded 120V outlets per module. Read literally, the two selected modules provide eight outlet receptacles across the desktop. Each PDC013 also has two USB-A and one USB-C charging port; they are charge-only, not data ports.

Each PDC013 is listed at 15A/125V maximum (1,875W) and 800-joule surge protection. Those are per-module limits: UPLIFT does not establish a combined circuit allowance or a 30A pair rating. The lift and two grommet cords also need grounded power, so plan their outlet routes rather than assuming the modules replace wall power.

The two modules occupy both holes, leaving no pass-through cover or storage cup. Choose the UPL120's two-cover state if cable routing matters more; the one-PDC019-plus-cover state combines two outlets with a cable opening. The dual-PDC019 alternative has four fixed outlets rather than this pair's eight. These hole plans cannot be combined.

Measure the underside and cord route

The 1-inch selected top matches the PDC013 instructions' stated 0.75-to-3.5-inch thickness range, and the UPL120 drawing shows two holes of the required 3.15-inch diameter. The instructions also require eight inches of open space directly below each hole for the module body and cord bend. Check both locations against frame parts, drawers, a cabinet, and anything else beneath the worktop; the configurable product page does not verify your installed clearance. Leave enough slack for the moving frame without letting cords enter the moving mechanism.

There is a source conflict on PDC013 cord length: the current product page, current specification, and instructions do not agree with one another or an older specification. This review therefore does not promise a particular reach. Verify the supplied cord and the path to a grounded 120V outlet for each module before assembly, and follow the maker's warnings against voltage converters, wet areas, or loads beyond the unit rating. The desk's separate lift mechanism also needs a grounded supply.

Basic movement is not preset recall

The selected black FRM072 Basic Display Angled keypad uses press-and-hold up/down movement and a digital height display. UPLIFT's keypad instructions cover mounting and a first-use reset, while its separate FRM072 sheet describes an auto-darkening display; the reviewed materials do not establish saved-height presets for this plan. If your routine depends on a tap-to-recall sitting and standing height, compare the separately assessed UPL120 FRM066 Advanced Comfort Angled or FRM055 Advanced Paddle states instead of assuming every angled keypad behaves alike.

UPLIFT publishes 22.6–48.7 inches at the surface, versus 21.6–47.7 inches for the bare frame; these are maker values, not measurements. Its frame sheet lists two motors and a 355-pound lifting-capacity figure, while the manual calls it a weight limit. Neither establishes static capacity, top mass or remaining payload. The frame manual specifies a 10-percent duty cycle, so do not treat that moving-load figure as a static rating.

Who this configuration is for

Keep this state on the list if the UPL120's wraparound top fits your room and workflow, Black Laminate is your preferred surface, you want the two raised-and-lowered power modules, and you can provide the manual's clearance and grounded power. A 39-inch room-depth allowance accommodates the drawing's maximum outer envelope; a 38-inch cap does not. The evidence does not support a minimum usable depth, a total circuit allowance, preset memory, or a static-load threshold. If any of those is essential, do not let the dramatic outlet count stand in for the missing measurement.

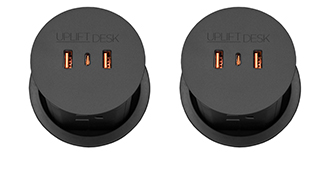

The desk-card image shows only the exact black UPL120 top; the selector thumbnail shows only the two PDC013 modules. Neither depicts this complete setup, and UPLIFT does not state whether the images are photos or renderings. For a straight-front alternative, compare the V3 C-frame plan; for the UPL120 outline with four fixed outlets, compare the dual-PDC019 plan before deciding whether pop-up access merits both holes.
